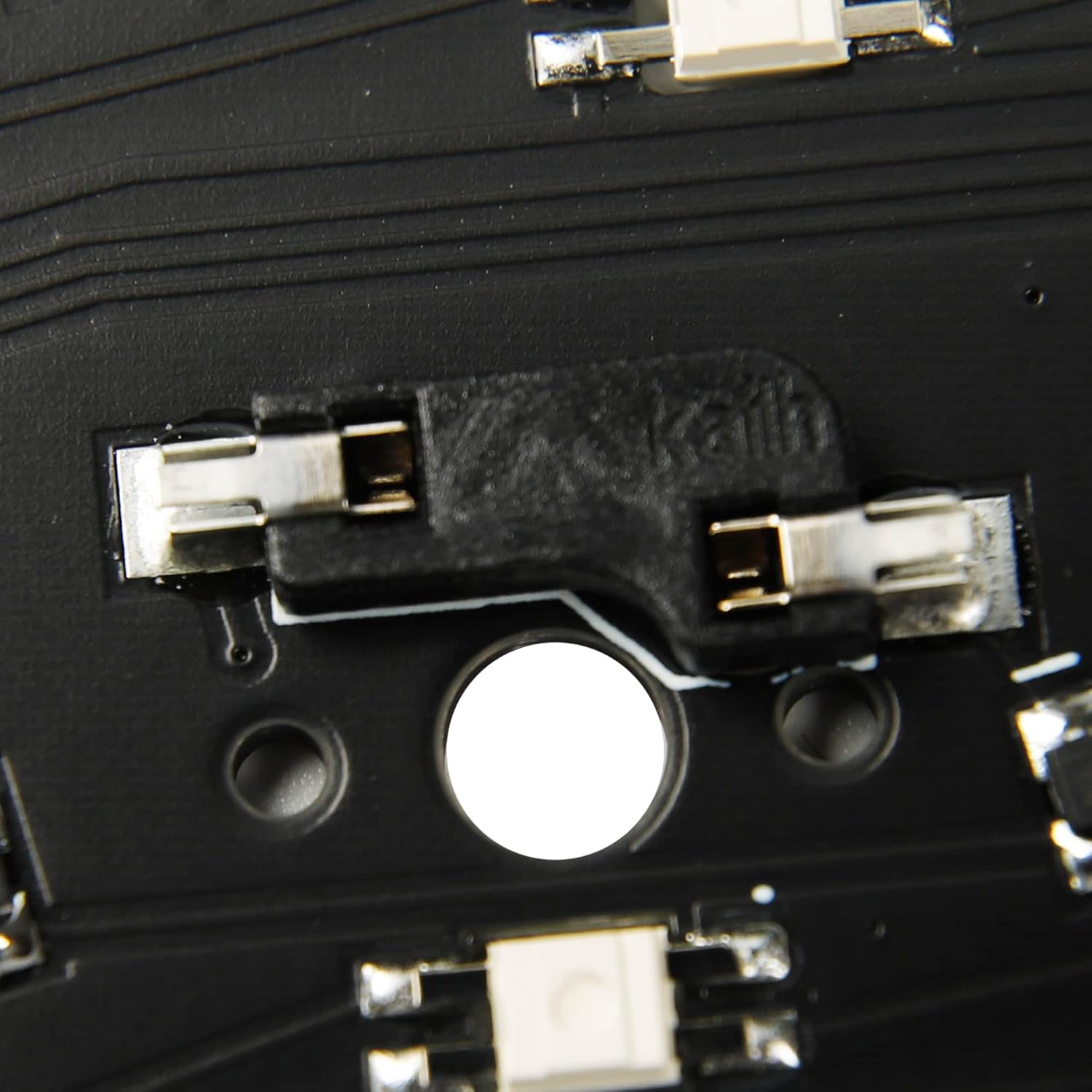

Kailh Hot-swap PCB Socket Hot Plug CPG151101S11 for Mechanical Keyboard DIY PCB Accessories (200pcs)

Details Package included: Only Kailh PCB Socket Specifications Model: CPG151101S11 One switch works with one socket. But only compatible with MX switches Rating voltage: 12V AC/DC (maximum) and 2V AC/DC (minimum) Rating current: 10mA AC/DC (maximum) and 10μA AC/DC (minimum) Contact resistance: 200mΩ (maximum) Insulation resistance: 100mΩ (minimum) (100VDC) Stand Voltage: AC100V(50-60Hz) Motion Force: 3.0kgf max Operating Life: 100 Cycles (can replace switches 100 times) Product Application:Applicable on Mechanical keyboards,ATM and other machines The current socket has been upgraded to a new version, and the upper one is a closed metal ring compared to the old version

• Package included: Only Kailh PCB Socket
• Model: CPG151101S11,One switch works with one socket. But only compatible with MX switches
• Rating voltage: 12V AC/DC (maximum) and 2V AC/DC (minimum),Rating current: 10mA AC/DC (maximum) and 10μA AC/DC (minimum)
• Insulation resistance: 100mΩ (minimum) (100VDC)
• Operating Life: 100 Cycles (can replace switches 100 times)
• The current socket has been upgraded to a new version, and the upper one is a closed metal ring compared to the old version
